Phast™ and Safeti™ extended explosions add-on

Efficient explosion modelling

The Extended Explosions add-on brings more detailed and extensive consideration of explosion consequences in comparison to the standard versions of Phast and Safeti.

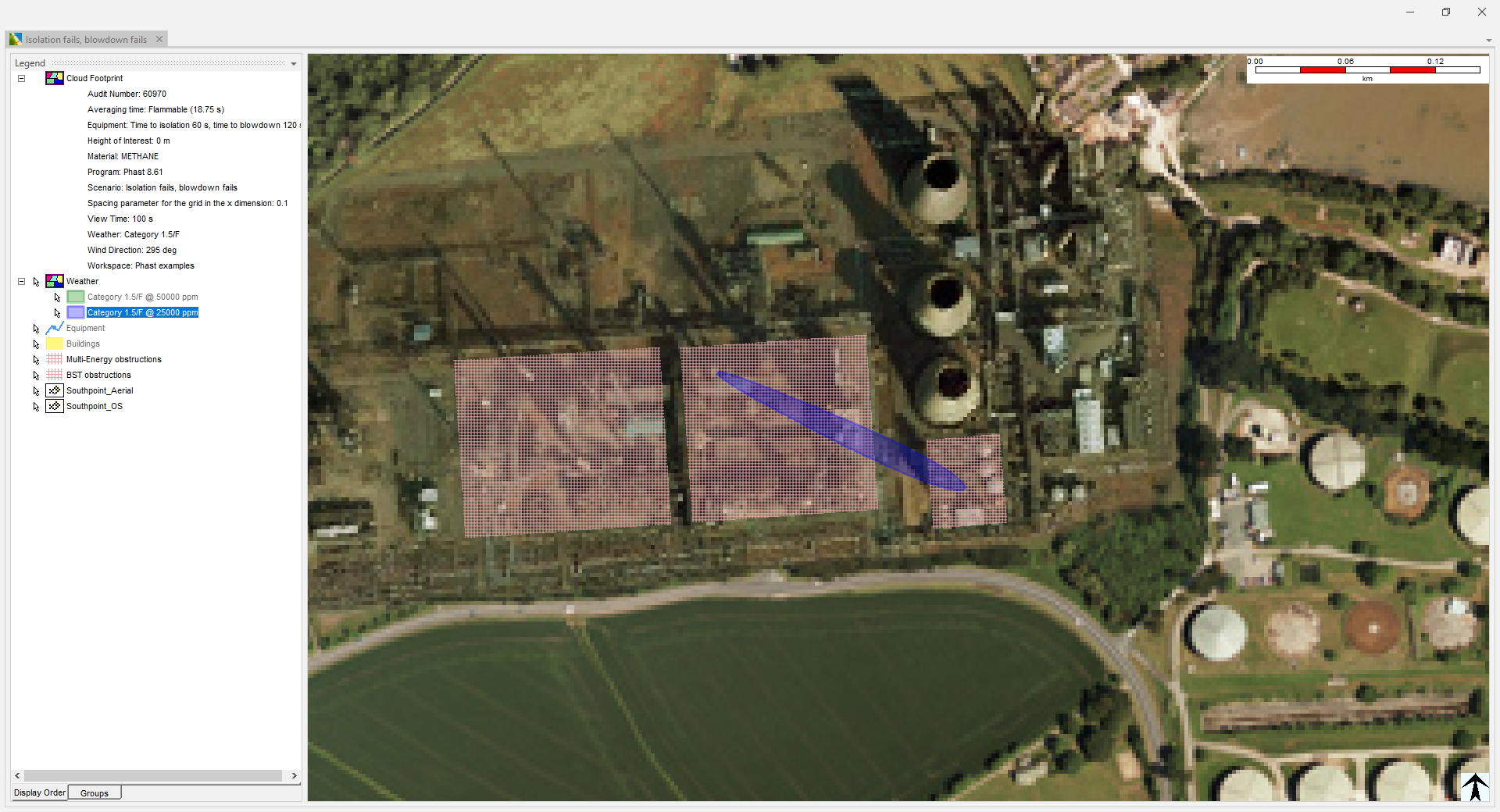

It has advanced vapour cloud explosion modelling capability that considers flammable cloud interaction with congested regions within process plants in all three dimensions (3D). This allows for a more realistic consideration of the explosion hazards.

explosion extension software

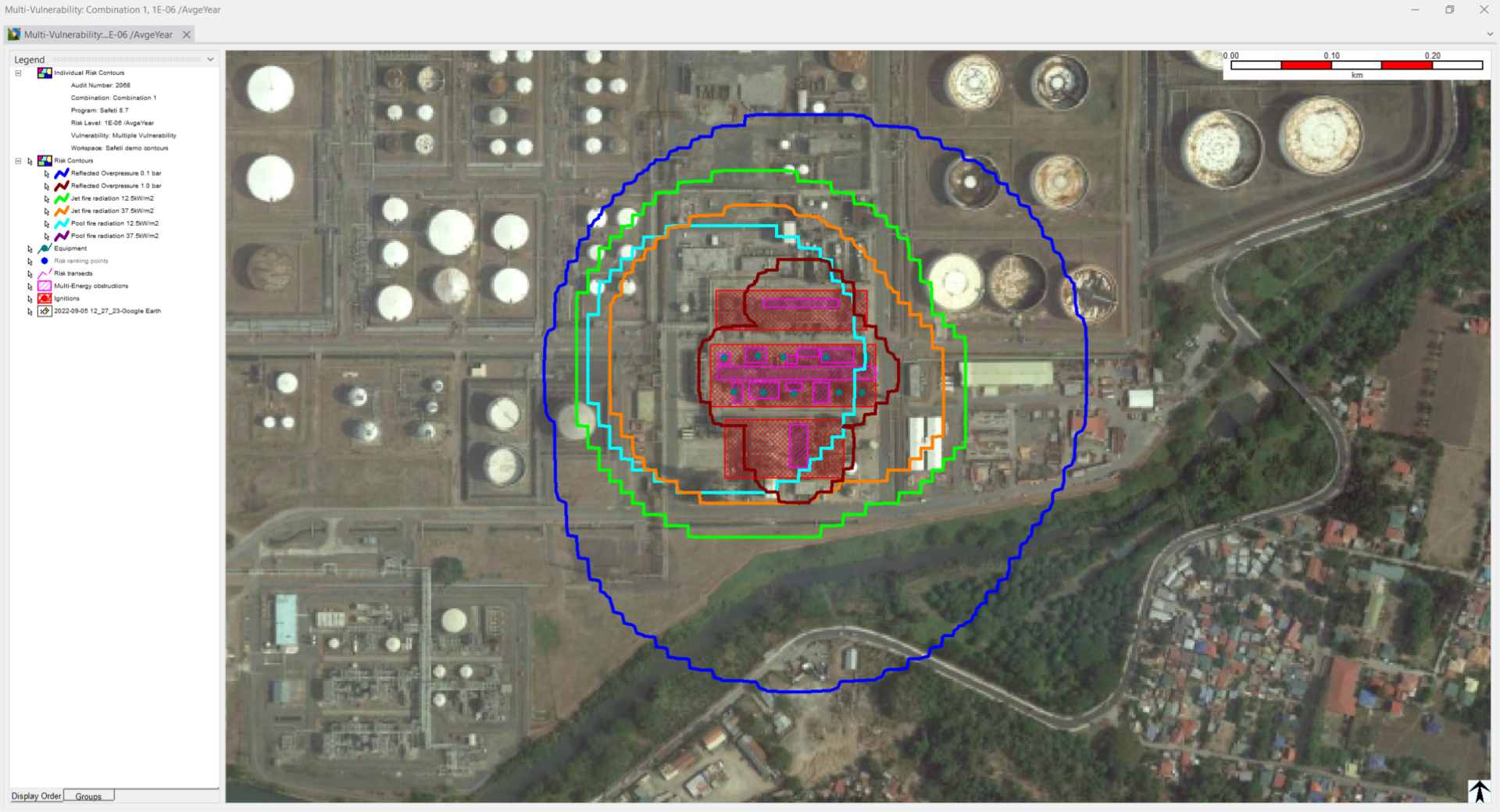

Combined effect contours from multiple scenarios

Inherent safe design

A key feature of this add-on is the ability to plot combined effect contours from multiple scenarios. This makes it easier to visualise, communicate and interrogate results associated with a range of hazards.

Combined effect contours can be plotted for overpressure, impulse, thermal radiation and toxic concentrations, facilitating the layout and design of equipment and buildings.

explosions extension software

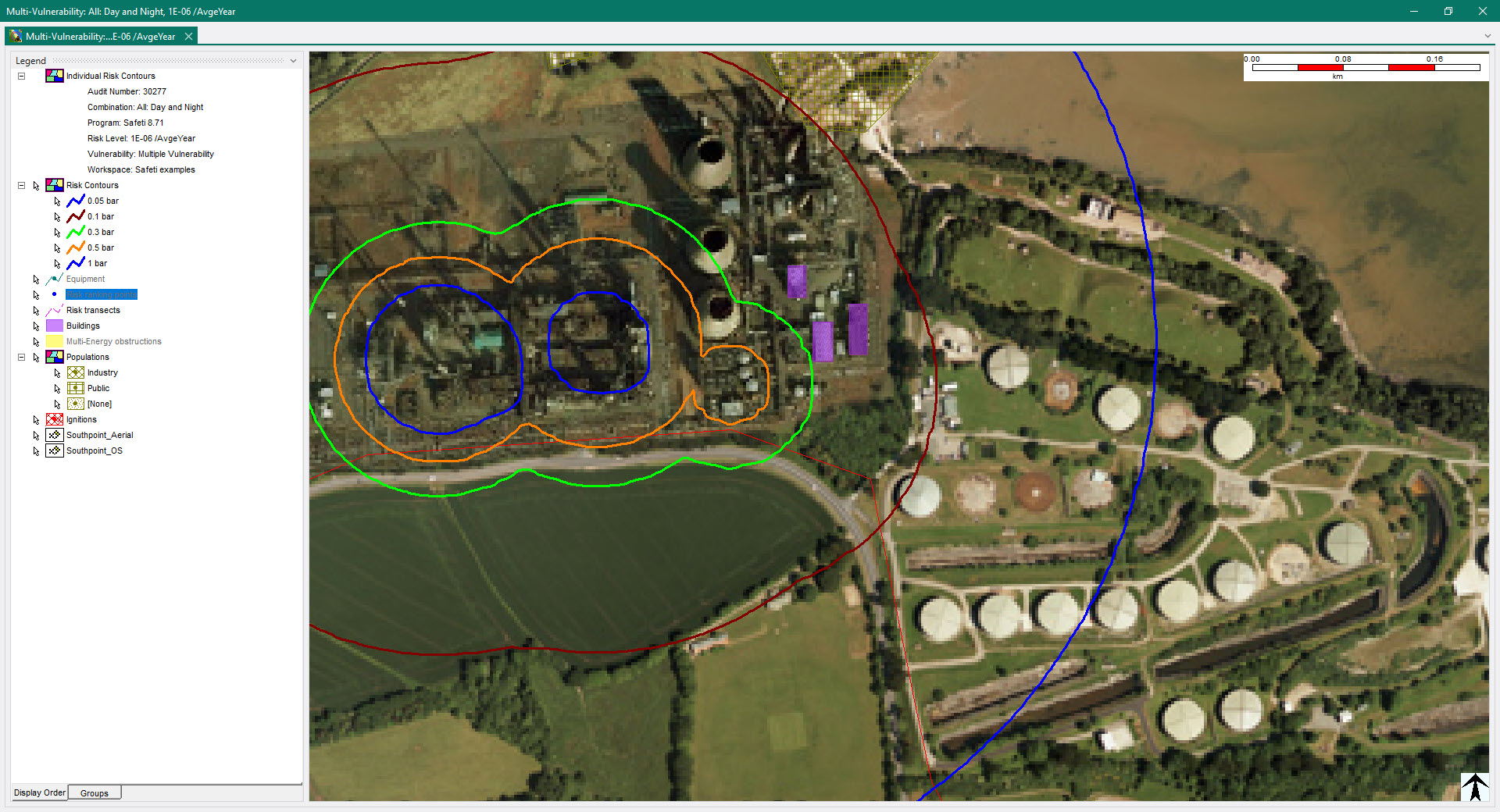

Risk contours for input to building design

Occupied buildings assessment

The Extended Explosions add-on uses both the Baker-Strehlow-Tang (BST) and Multi-Energy (ME) explosion models to provide options for modelling vapour cloud explosion hazards.

The add-on allows for the design of buildings in accordance with guidance such as Chemical Industries Association (CIA) and API Recommended Practices 752 and 753.

Explosions extension software

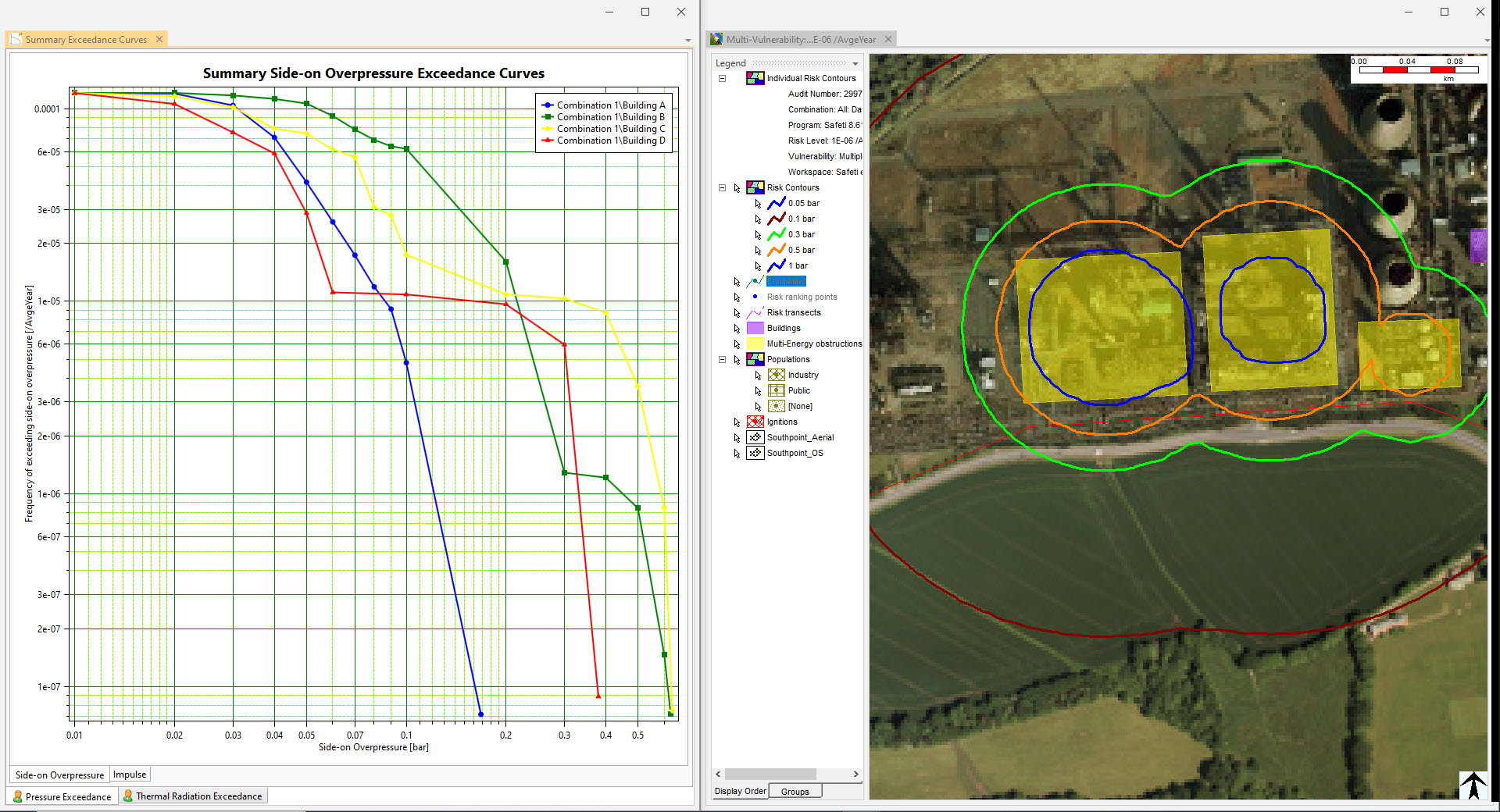

Exceedance curves and risk effect contours in Safeti

Risk-based design

The Safeti Extended Explosions add-on allows you to define building categories with different vulnerabilities, providing a more accurate QRA.

In addition to standard risk results, the add-on provides exceedance curves and risk effect contours to support risk-based decision-making.

Frequently asked questions

  • Phast and Safeti Explosions extension is able to provide a very quick estimate of potential explosion scenarios and its effects. It is particularly useful for Fire and Explosion Risk Assessments (FERAs) and Quantitative Risk Assessments (QRAs), given the large number of scenarios required to be modelled. It is also useful for general facility siting and building design. EXSIM, on the other hand, provides a more thorough account of physical geometries/obstacles by using computation fluid dynamics (CFD) in the explosion assessment, making it used more for very detailed design work (e.g. layout of equipment within a congested region, blast wall design, structural response/design).
  • The Explosions extension does not model escalation effects. The Explosions extension can only be used for offshore cases with simple geometry when dispersion can be reasonably predicted by the software and explosion strength can be estimated using GAMES correlation or supplied by the user. Even so, the predicted results of an explosion have no consideration of shielding by blast walls and other obstructions.
  • The Explosions extension is required to produce impulse information from explosion scenarios. In the process industry, both impulse and overpressure are typically used in building design.

Related add-ons

Phast CFD add-on

Complex geometries for modelling circular and rectangular pool fires and jet fires.

Read More

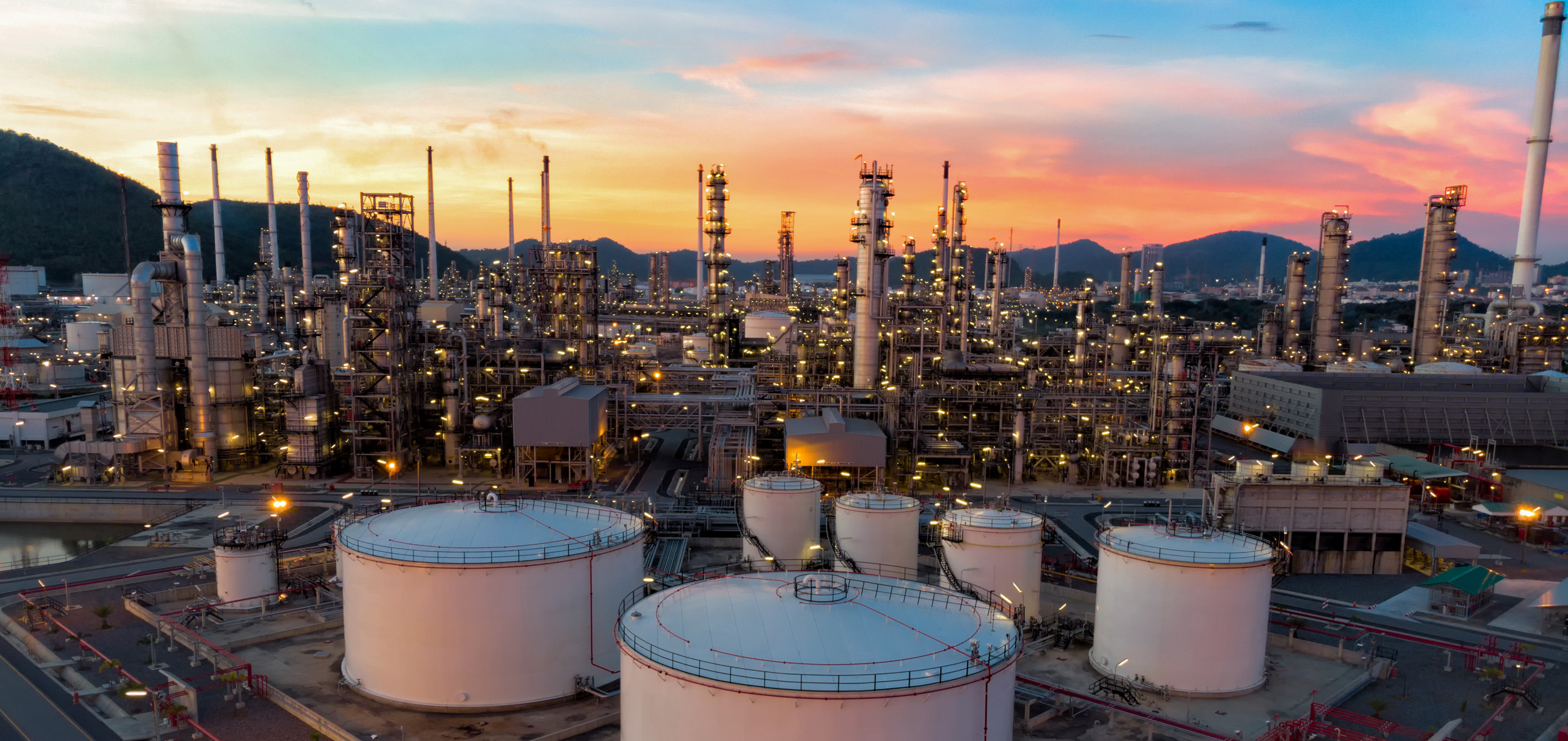

Plant facilities overview

Multi Component add-on

Rigorous calculation of mixture thermodynamic properties.

Read More
oil terminal with storage tank

Solid Explosions add-on

Modelling solid explosions to ensure regulatory compliance and to mitigate risks effectively.

Read More

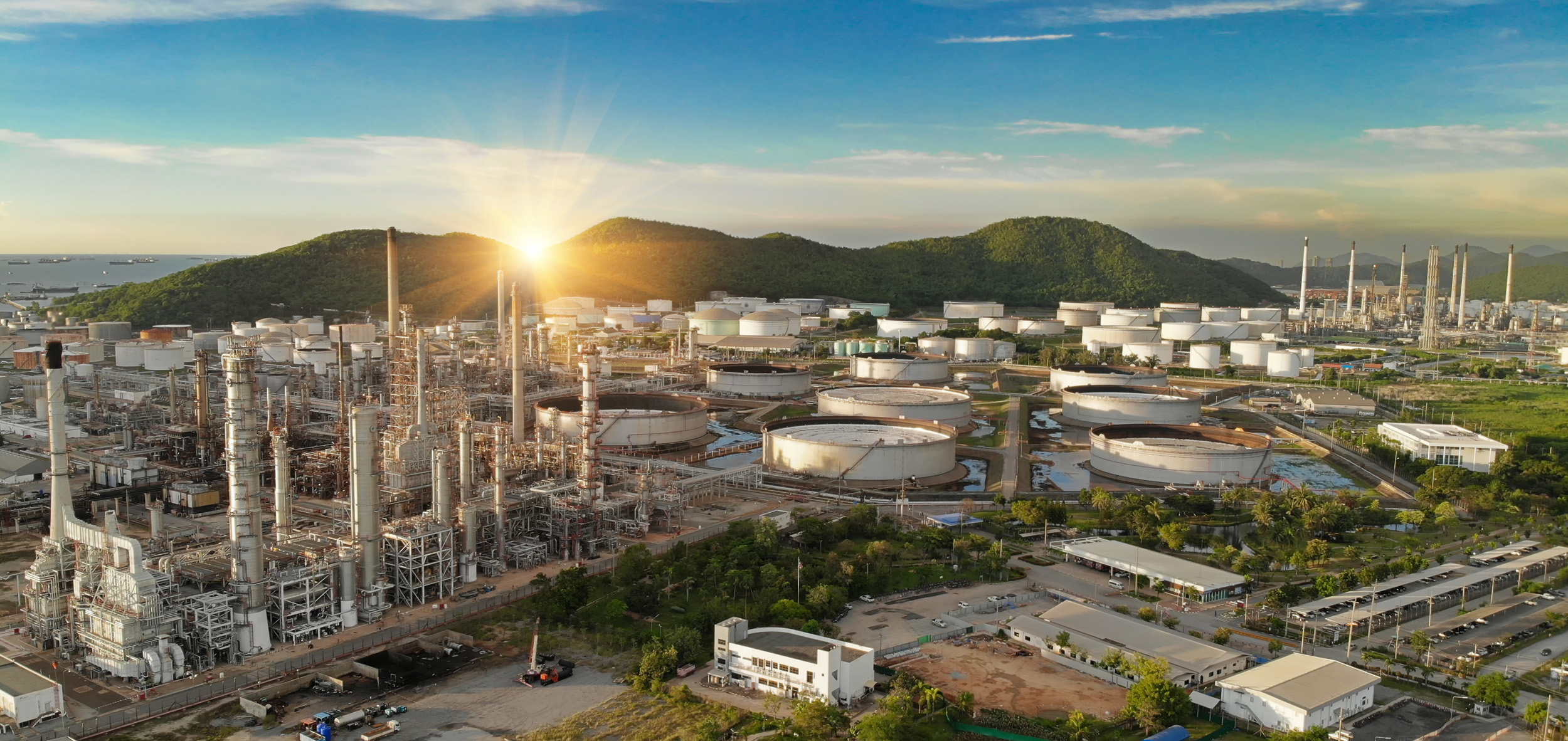

plant facility
