A semisubmersible is designed to operate in harsh environments in operational and temporary conditions. In this context, it becomes essential to understand how different accelerations impact the integrity of the structure.

For example, floating structures can be submitted to different sea state conditions during towing operations, which will impact on the acceleration response of the unit. The effect of these accelerations on the integrity of a platform structure is extremely important and it will be taken in account by means of a motion analysis.

This analysis has been thoroughly discussed in the paper “Influence of Sea State in Evaluating the Accelerations at Critical Points of a Semisubmersible” presented at OTC 2013 in Brazil, see link. The paper introduces a case study which evaluates the influence of the sea state in the accelerations at critical points of a semisubmersible platform during a towing operation.

One of the most challenging steps in a towing operation analysis of a semisubmersible is to determine which sea state must be considered. In order to overcome this challenge, a number of different sea states have been analysed in this study in order to verify whether they meet the criteria of maximum accelerations for a specific floating unit.

With this information, it was possible to create an abacus of allowable wave heights as a function of the wave period, when the criteria of maximum accelerations are known. From these criteria, for different drafts and unit headings, it was possible to obtain the maximum significant wave heights so that the accelerations will not be higher than the established criteria.

There are mainly two scenarios where the abacus could be used:

  • When planning the towing operation based on the forecasted sea state;
  • During the towing operation itself, in order to ensure the structural integrity of the towed unit.

Through the abacus’ technique, it is possible to establish the best route taking into account the wave characteristics of each sea state. An example of the abacus is shown below:

renatapic1

Accelerations at 45 deg heading

The next step would be to perform the motion response analysis in HydroD which is an interactive application for computation of hydrostatics and stability, wave loads and motion response for ships and offshore structures. The wave loads and motions are computed by Wadam or Wasim in the Sesam suite of programs. Wadam uses Morison’s equation and first and second order 3D potential theory for the wave load calculations and a small forward speed (from version 9.2). So unless the forward speed is significant, Wadam can be used. Otherwise, if large forward speed shall be used, Wasim is the solver to be selected. Wasim is a program for computing global responses and local loading on vessels moving at any forward speed as long as the vessel is not planning. The simulations are carried out in time domain, but results are also transformed to frequency domain by using Fourier transform.

renatapic2

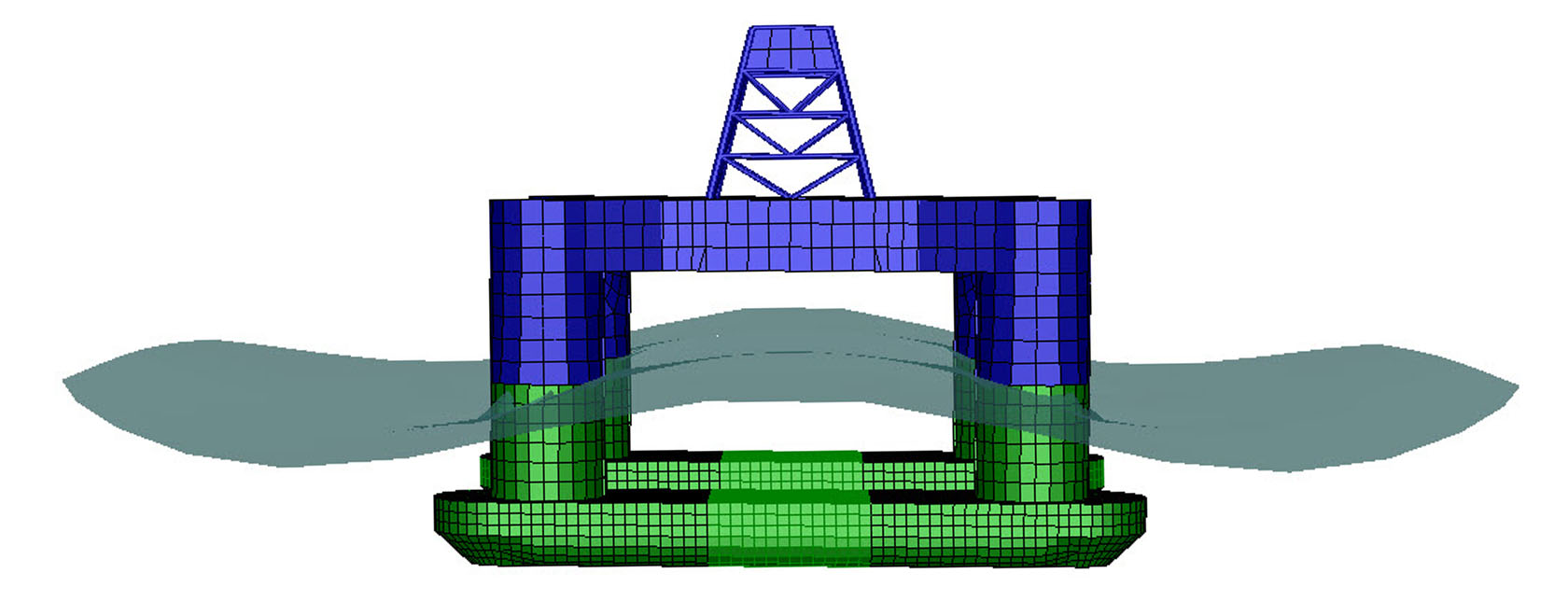

Semisubmersible

After performing the motion analysis, Postresp shall be used for the results post processing. Postresp is a general interactive graphic postprocessor for post processing of general responses given as transfer functions in the frequency domain, or post processing of time series in the time domain. So the acceleration transfer functions which have been calculated from the response amplitude operators (RAO) generated by Wadam or Wasim can then be studied in Postresp.

If a structural assessment is also of interest, a load transfer of hydrostatic loads can also be performed in HydroD and a further structural linear analysis using Sestra, which is the structural solver.

As you can see, the entire Sesam suite provides valuable insights during design and operational stage. If you would like to have further information about Sesam and its capabilities, please contact one of our local offices and we will be happy to help you.

If you need more information on the technique developed to design the abacus, please refer to the paper.
