Effortlessly plan and verify a route

Journey continues on Veracity, DNV's trusted digital platform.

Planning the route of a transmission line is much more complicated than simply putting up some towers between two points. There are many factors to take into account – any of which, if violated, could lead to a collapse of the line or even electrocution of passers-by.

To calculate these factors accurately, highly specialized software programs are used. These programs requires several months of training and take years to master.

KELSoP reproduces the main functionality of these software programs, but strips it down to the bare essentials. It includes everything required to plan and verify an emergency transmission line.

The essentials of operating KELSoP can be mastered within a single day of training. It provides everything necessary to implement your emergency solution. Outputs include:

route overviews (top view and side views)
assembly drawings of the towers
positions of the guy-wires
installation charts for phase and earth conductors
mechanical load results on all the towers

Provides both plan and side view of the line. Shows immediately any possible violations and updates as the towers are moved/changed.

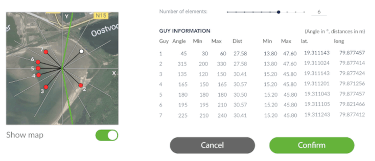

Provides detailed analysis of the guy wire placement for each tower.

Guy wires can be moved using the graphic interface, to avoid obstacles in the field. The user will be alerted when those moves violate safety/design parameters.
Checks and verifies the utilization on the structures and insulators compared to their design loads.
