Save lives by understanding fire, explosion and toxic effects

Our consequence analysis solutions Phast™, KFX™ and EXSIM enable process safety professionals to understand the extent and severity of potential loss of containment scenarios involving flammable and toxic materials.

Solving a range of problems, such as designing a new vent, retrofitting blast protection to a building or specifying passive fire protection, Phast, KFX and EXSIM are applicable for a range of hazardous industries, including oil & gas, chemical, petrochemical, energy transition, and more.

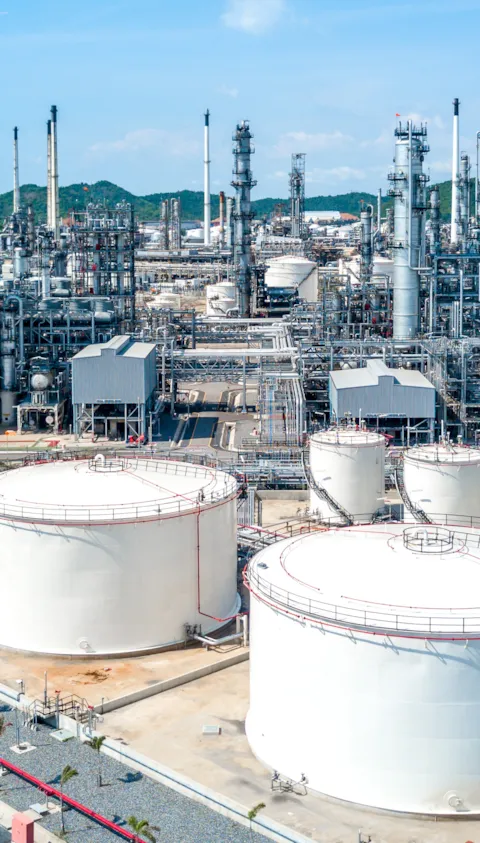

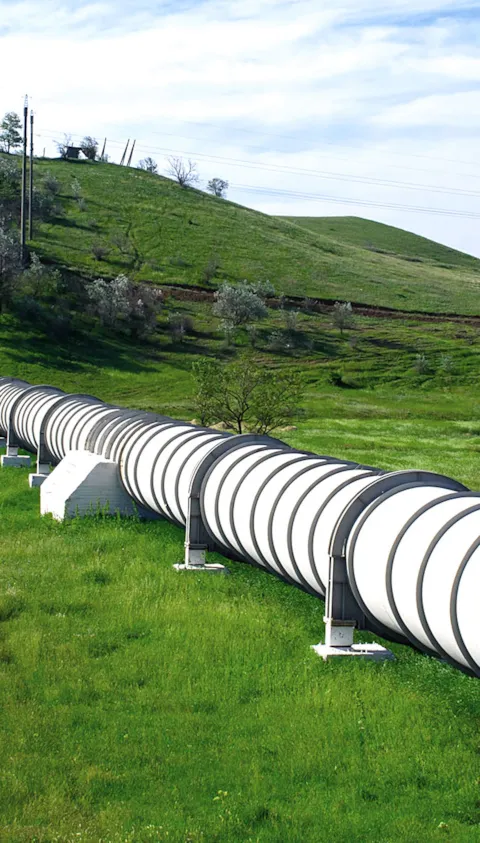

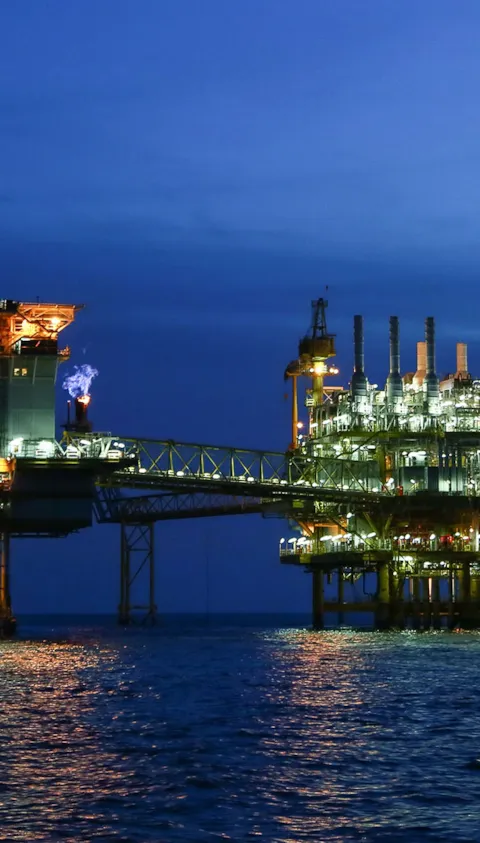

The consequence analysis software is also applicable for a range of assets, including but not limited to refineries, pipelines, LNG terminals, offshore installations, transportation and storage.

Our consequence and risk solutions - Phast, Safeti, KFX and EXSIM - give you confidence

Ensure the safety not only of your facility but of the people who depend on it.

Phast™ - Integrated free-field and CFD simulations

Phast is a discharge, dispersion, fire, explosion and toxic modelling software using free-field empirical and Computational Fluid Dynamics (CFD) methods.

Great for:

Learn more about the Phast software.

KFX™ - Advanced CFD simulation for dispersion and fires

KAMELEON FIREEX KFX® is an advanced dispersion and fire modelling software that uses complex three-dimensional (3D) geometries to perform CFD simulations.

Great for:

  • Advanced facility siting and layout optimisation
  • ALARP demonstration
  • Detailed design of fire mitigation measures
  • Detailed understanding of dispersion and fires where geometries and terrains play an important role
  • Impact assessment for firewalls, water mists, water curtains, deluge, monitors and sprinklers
  • Optimisation of passive fire protection (PFP)
  • Smoke analysis

Learn more about the KFX software.

EXSIM - Advanced CFD simulation for explosions

EXSIM is an advanced gas explosion modelling software that uses complex 3D geometries to perform CFD simulations.

Great for:

  • Advanced facility siting and layout optimisation
  • ALARP demonstration
  • Detailed understanding of explosions where geometries and terrains play an important role
  • Detailed design of explosion mitigation measures
  • Impact assessment for blast walls and explosion relief panels

Learn more about the EXSIM software.

Advanced comparison of Phast, KFX, and EXSIM

Phast KFX EXSIM

Phast

Discharge, dispersion, fire, explosion, and toxic modelling

KFX

Advanced dispersion and fire modelling involving 3D geometries and terrains

EXSIM

Advanced explosion modelling involving 3D geometries and terrains
Phast KFX EXSIM

Phast

Free-field empirical and phenomenological models

KFX

Computational Fluid Dynamics (CFD)

EXSIM

Computational Fluid Dynamics (CFD)
Phast KFX EXSIM

Phast

  • Accident and incident investigation
  • ALARP demonstration
  • Consequence estimation for HAZOP, HAZID, PHA, LOPA
  • Consequence input to your own QRA tool
  • Emergency response planning
  • Equipment design
  • Escalation assessment
  • Extent and severity assessment
  • Facility siting and layout optimisation
  • Hazardous area classification
  • Regulatory obligations (e.g. safety reports)
  • Vent and flare design
  • Other general consequence estimation

KFX

  • Advanced facility siting and layout optimisation
  • ALARP demonstration
  • Detailed design of fire mitigation measures
  • Detailed understanding of dispersion and fires where geometries and terrains play an important role
  • Impact assessment for firewalls, water mists, water curtains, deluge, monitors and sprinklers
  • Optimisation of passive fire protection (PFP)
  • Smoke analysis

EXSIM

  • Advanced facility siting and layout optimisation
  • ALARP demonstration
  • Detailed understanding of explosions where geometries and terrains play an important role
  • Detailed design of explosion mitigation measures
  • Impact assessment for blast walls and explosion relief panels
Phast KFX EXSIM

Phast

  • 40+ scenario types
  • Constant and time-varying discharge models, including effects of isolation and blowdown
  • Weather definition (wind speed, atmospheric and substrate conditions)
  • 2000+ materials from the DIPPR database
  • User-specified materials
  • Excel import for efficient study creation
  • Map / plot plan import
  • GIS coordinate systems
  • Buildings for wake model or in-building releases
  • Congested regions on the map for explosion modelling*
  • Results in the form of dispersion concentrations, flame length, pool diameter, thermal radiations, flash fire, explosion overpressure and impulse, and toxic probit, dose and lethality
  • Results presented in reports, 2D graphs, a 3D viewer, on maps or plot plans, and in tabular format

    * Available with Phast Explosion extension only

KFX

  • Gas release model with or without ignition
  • Liquid pool spread model including calculation of evaporation rate
  • Spray model for liquid and two-phase releases
  • User-specified ignition point
  • Spray model for modelling of fire mitigation by the use of water systems such as sprinklers and deluge
  • Import of 3D geometry models and terrain models from common CAD formats
  • Results presented together with the 3D geometry model
  • High resolution heat load footprints on objects and structures
  • Realistic visualisation of fires and gas clouds in a 3D viewer
  • Calculation of equivalent stoichiometric gas cloud size as input  to CFD explosion simulations

EXSIM

  • Efficient case generation and simulations
  • Uses the same 3D geometry format as KFX
  • Results presented together with the 3D geometry model
  • Overpressure vs time at specified locations
  • Average blast loads to walls and objects
  • High resolution footprints of overpressure and drag forces on objects and structures
Phast KFX EXSIM

Phast

  • Phast Explosions
  • Phast Multi-Component
  • Phast CFD - pool fire
  • Phast CFD - jet fire
  • Phast CFD - dispersion

KFX

  • FAHTS for export of heat loads to USFOS for structural response calculations and optimised design of passive fire protection
